The 5 Pillars of Commercial Automated Fertigation: Engineering High-Performance Irrigation Systems

By AG Editorial · September 1, 2026

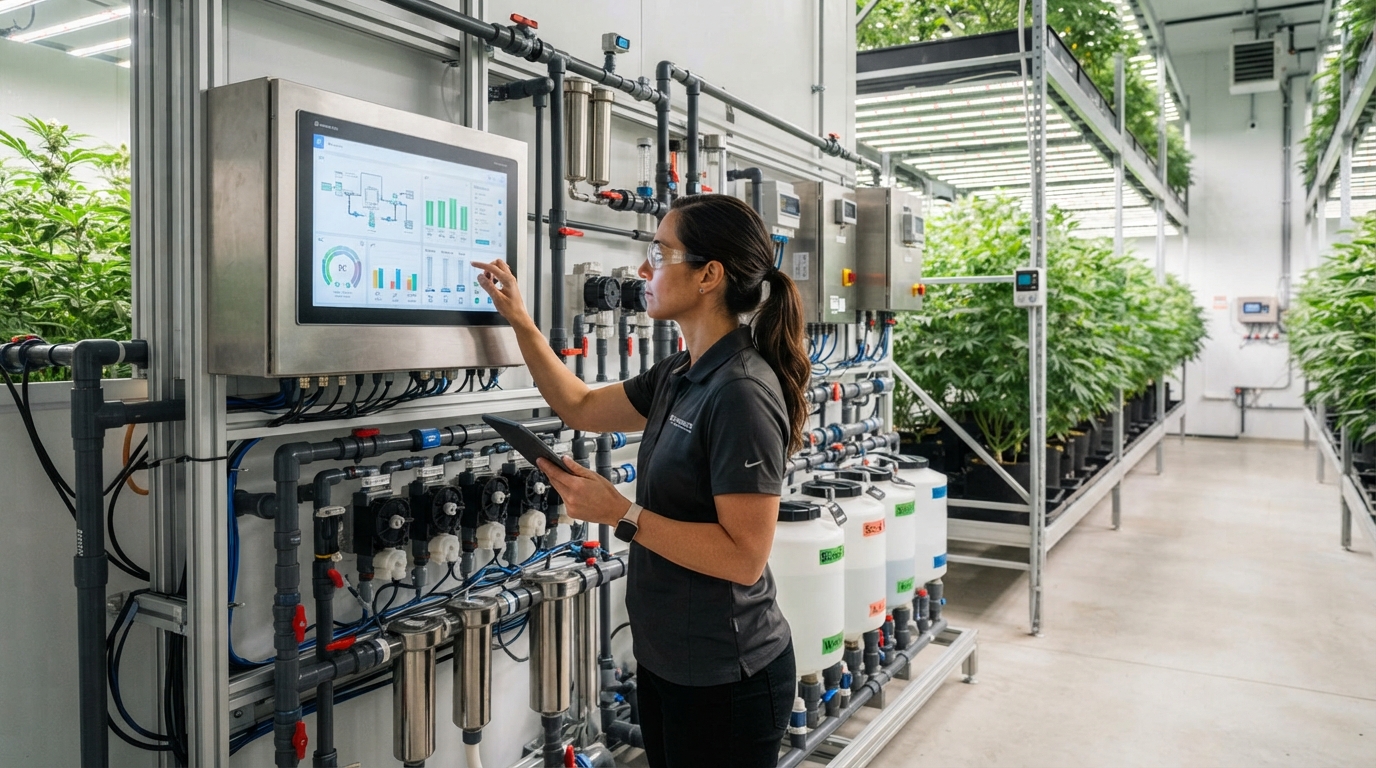

The 5 Pillars of Commercial Automated Fertigation: Engineering High-Performance Irrigation Systems — pillar

Quick answer

Commercial fertigation relies on five foundational pillars: hydraulic precision (maintaining >95% distribution uniformity), root-zone physics (governing substrate volumetric water content and pore-water electrical conductivity), automated dosing chemistry (exact inline or batch nutrient delivery), sensor-integrated crop steering (vegetative versus generative dryback manipulation), and facility sanitation protocols (biofilm control and line maintenance). Mastering these pillars eliminates microclimatic root-zone variance and maximizes commercial yield per square foot.

Key takeaways

  • Hydraulic Uniformity: Sub-main manifold balancing and pressure-compensating emitters must maintain a Christiansen Uniformity Coefficient (CU) above 95% to ensure uniform nutrient access.
  • Dynamic Crop Steering: Modulating shot volumes across distinct irrigation phases (P1, P2, P3) allows facilities to dictate plant morphology and biomass accumulation accurately.
  • Pore-Water EC Control: Monitoring the relationship between substrate dryback, bulk EC, and runoff prevents osmotic shock and mineral lockouts in high-intensity media like coco coir and rockwool.
  • Biofilm and Sanitation Strategy: Continuous low-dose sanitation (e.g., 1–3 ppm free available chlorine) prevents emitter clogging, pressure drop, and root-zone pathogens.

Pillar 1: Hydraulic Engineering and Distribution Uniformity (DU)

At commercial scale, irrigation is a fluid dynamics problem. A facility operating 50,000 square feet of canopy cannot tolerate delivery variances between the first bench off the pump station and the terminal bench 300 feet down the line. Distribution Uniformity (DU) directly dictates canopy consistency.

 Christiansen Uniformity Coefficient (CU):
 CU = 100 * [ 1.0 - ( ∑|Xi - X̄| / (n * X̄) ) ]
 Where:
   Xi = Individual emitter output volume
   X̄  = Mean emitter output volume across all sample points
   n  = Total number of measured emitters
 Target: CU ≥ 95%

Sub-Main Manifold and Supply Line Sizing

Pressure drops occur when fluid velocities exceed optimal operational parameters. Commercial supply lines must be engineered using standard hydrodynamic criteria:

  • Fluid Velocity Limits: Keep line velocity between 3.0 and 5.0 feet per second (fps). Velocities below 2.0 fps allow particulate settling; velocities exceeding 5.0–7.0 fps cause friction losses, water hammer, and premature valve wear.
  • Looping Sub-Mains: Terminating supply lines into dead ends creates pressure gradients and stagnant debris pockets. Implementing closed-loop sub-main manifolds equalizes head pressure across all feeder lines.
  • FloraFlex Sub-Main Manifold Integration: Utilizing dedicated manifold units with integrated pressure gauges and isolation ball valves allows zone-by-zone pressure verification before nutrient solution reaches the plant benches.

Emitter Selection: Pressure-Compensating vs. Tortuous Path Micro Drippers

Emitter Type Operating Pressure Range Flow Rate Tolerance Application Fit
FloraFlex Micro Dripper (Tortuous Path) 10 – 30 PSI ± 5% within pressure spec Short-run tables, pressurized closed loops, fast-flush cleanability
Pressure-Compensating (PC) Dripper 15 – 50 PSI ± 2% across pressure band Long linear runs (>100 ft), multi-tier vertical racks with elevation changes
FloraFlex Matrix System Gravity / Low-Pressure Capillary Top-feed even saturation 1-gallon to 5-gallon pots requiring 360° substrate coverage without channeling

Maintaining delivery precision prevents uneven saturation, localized salt buildup, and erratic dryback rates within the same production batch.


Pillar 2: Root-Zone Physics and Substrate Water Relations

Irrigation efficiency depends on how fluid interacts with the growing media. Commercial facilities prioritize low-CEC or inert substrates such as coco coir blends or horticultural rockwool to maintain strict steering control.

Volumetric Water Content (VWC) and Field Capacity

Substrates do not hold water uniformly under external tension. Understanding substrate moisture bands is fundamental to automated control:

  • Total Porosity: The total void space within the substrate matrix (rockwool: ~90–95%, coir: ~75–85%).
  • Field Capacity (Maximum VWC): The volume of water retained after gravitational drainage has ceased (typically 65–75% VWC in rockwool; 55–65% in premium buffered coir).
  • Permanent Wilting Point: The threshold below which plant roots cannot overcome substrate capillary tension (typically <15% VWC). Commercial cultivation rarely allows substrates to drop below 25–30% VWC to prevent root hair desiccation.
+-------------------------------------------------------------------------+
| SUBSTRATE VOLUMETRIC WATER CONTENT (VWC) PHASES                         |
|                                                                         |
| [ 100% Saturation ] ---> Gravitational Runoff Zone                      |
| [ 65% - 75% VWC   ] ---> Target Field Capacity (Post-P1 Phase)          |
| [ 40% - 55% VWC   ] ---> Vegetative Dryback Operating Window           |
| [ 25% - 35% VWC   ] ---> Generative Dryback Operating Window           |
| [ < 20% VWC       ] ---> Risk of Channeling, Hydrophobicity & Root Burn |
+-------------------------------------------------------------------------+

Pore-Water EC vs. Bulk (Substrate) EC

Pore-water electrical conductivity represents the exact osmotic environment experienced by the root hairs, which differs significantly from the bulk EC reported by standard insertion probes.

  • Bulk EC: The conductivity of the aggregate substrate matrix (fibers, trapped air, and solution combined).
  • Pore-Water EC ($EC_{pw}$): The actual ionic concentration of the liquid film surrounding root tissues. As substrate dries from 70% VWC down to 40% VWC, the water evaporates or transpires while dissolved ions remain, roughly doubling the local pore-water EC:

$$EC_{pw} \approx \frac{EC_{bulk} \times \theta_{sat}}{\theta_{actual}}$$

Where $\theta_{sat}$ is saturation VWC and $\theta_{actual}$ is current real-time VWC. Unmanaged drybacks spike pore-water EC beyond 10–12 mS/cm, inducing osmotic stress and stalling nutrient uptake.


Pillar 3: Automated Nutrient Chemistry and Dosing Architecture

Commercial scale demands consistent mineral delivery without human measurement errors. Scaling facilities must transition from manual batch reservoirs to automated batching or direct inline multi-channel fertigation.

               +----------------------------------------+
               |          Raw Source Water In           |
               +-------------------+--------------------+
                                   |
                                   v
               +----------------------------------------+
               | Pre-Filtration & RO (EC < 0.1, pH 6.5) |
               +-------------------+--------------------+
                                   |
                                   v
+----------------------------------------------------------------------+
| INLINE MULTI-CHANNEL INJECTION MANIFOLD                              |
|                                                                      |
|  [Stock Tank A]   [Stock Tank B]   [Stock Tank C]   [Acid/Base Correction]|
|  (Macro Elements) (Micro/Secondary) (Phosphites/Bio) (pH Stabilizers)    |
|        |                |                |                |          |
|        +--------> Injection Venturi / Positive Disp. <----+          |
+----------------------------------+-----------------------------------+
                                   |
                                   v
               +----------------------------------------+
               | Static In-Line Hydrodynamic Mixer Pipe  |
               +-------------------+--------------------+
                                   |
                                   v
               +----------------------------------------+
               | Zone Solenoids & Pressure Regulators   |
               +-------------------+--------------------+
                                   |
                                   v
               +----------------------------------------+
               | FloraFlex Micro Dripper Delivery Grid  |
               +----------------------------------------+

Inline Direct Injection vs. Automated Batch Tanks

1. Inline Direct Injection

  • Mechanics: High-frequency, positive-displacement injector pumps or differential pressure venturi units introduce stock concentrates directly into pressurized water lines.
  • Advantages: Zero storage footprint; infinite dynamic recipe switching per zone; continuous on-demand solution creation.
  • Risks: Rapid sensor failure can cause immediate crop loss; requires high-precision flow sensors and redundant pH/EC safety shutoffs.

2. Automated Batch Mixing (Day Tanks)

  • Mechanics: Nutrients are dosed into an intermediate buffer tank (100–1,000 gallons), thoroughly mixed with recirculating pumps, stabilized, and confirmed by dual sensor arrays prior to zone dispatch.
  • Advantages: High consistency; buffer volume protects canopy against injector misfires; allows dissolved oxygen (DO) stabilization.
  • Disadvantages: Larger footprint; requires tank sanitation cycles to avoid biological growth.

Mineral Speciation and Solubility Management

Stock solution concentration ratios must account for chemical precipitation thresholds. Standard 200:1 commercial concentrates must separate calcium compounds from sulfate and phosphate ions:

  • Stock Tank A: Calcium Nitrate, Potassium Nitrate, Iron Chelates (EDDHA / DTPA).
  • Stock Tank B: Mono-Potassium Phosphate ($KH_2PO_4$), Potassium Sulfate ($K_2SO_4$), Magnesium Sulfate ($MgSO_4$), Micronutrients (Boron, Zinc, Manganese, Copper, Molybdenum).
  • Stock Tank C (Optional/Specialty): Sanitation chemistry (Hypochlorous acid) or organic biostimulants. Never mix chlorine products directly with concentrated stock fertilizers or acids.

Pillar 4: Precision Crop Steering Protocols

Crop steering is the practice of manipulating root-zone moisture tension and electrical conductivity to direct plant energy into either vegetative growth (structural biomass, rapid cell expansion) or generative growth (compact nodes, robust flowering, elevated secondary metabolite production).

+---------------------------------------------------------------------------+
| DAILY IRRIGATION TIMELINE: CROP STEERING EVENT SEQUENCE                   |
|                                                                           |
| Lights ON                                                                 |
|    |                                                                      |
|    |-- [ P0: Rest Period ] -> Transpiration ramp-up, no irrigation        |
|    |                                                                      |
|    |-- [ P1: Charge Phase ] -> Micro-shots bring media to Max Field VWC   |
|    |                           (Runoff initiated toward end of P1)        |
|    |                                                                      |
|    |-- [ P2: Maintenance ] -> Small pulse shots maintain dynamic VWC      |
|    |                           (Extends vegetative transpiration)        |
|    |                                                                      |
|    |-- [ P3: Dryback Phase ] -> Zero irrigation through afternoon & night |
|    |                           (Builds controlled root-zone tension)      |
|    v                                                                      |
| Lights OFF                                                                |
+---------------------------------------------------------------------------+

Dynamic Irrigation Phasing: P1, P2, and P3

  1. Phase 1 (P1 - Charge Phase):

    • Objective: Bring the substrate from its overnight minimum VWC to target field capacity within 1 to 2.5 hours of first shot initiation.
    • Shot Strategy: Administer multiple micro-shots (e.g., 2–4% substrate volume per shot) spaced 10–25 minutes apart. This gradual ramping avoids channeling and forces uniform horizontal capillary diffusion.
    • Runoff Timing: Target initial runoff collection on the 3rd, 4th, or 5th shot of P1.
  2. Phase 2 (P2 - Maintenance Phase):

    • Objective: Sustain substrate moisture within an optimal window during peak photosynthetic activity without generating excessive runoff.
    • Vegetative Steering: Frequent P2 shots maintain higher average VWC (e.g., 55–65%) and steady EC, promoting cell division and foliage expansion.
    • Generative Steering: Suppress or eliminate P2 shots entirely, forcing earlier onset of substrate dryback.
  3. Phase 3 (P3 - Overnight Dryback Phase):

    • Objective: Create intentional substrate tension and control overnight root oxygenation.
    • Dryback Calculation: $$\text{Dryback %} = \text{Peak P1/P2 VWC %} - \text{Pre-First-Shot Morning VWC %}$$
    • Targets:
      • Vegetative Dryback: 10% to 15% drop in VWC.
      • Generative Dryback: 20% to 35% drop in VWC.

Crop Steering Phase Matrix

Parameter Vegetative Steering (Cuttings, Early Veg, Bulking) Generative Steering (Transplant, Flip, Final Ripening)
Input EC Range 2.0 – 2.8 mS/cm 3.0 – 4.5 mS/cm
Substrate Peak VWC 65% – 75% 55% – 65%
Overnight Dryback 10% – 15% 20% – 35%
P1 First Shot Timing 1.0 – 1.5 hours after lights ON 2.0 – 3.5 hours after lights ON
P2 Shot Frequency Regular pulses to hold peak VWC Minimal or zero pulses
Runoff Fraction 15% – 25% of total input volume 5% – 10% (or zero during extreme generative periods)
Target Substrate EC Input EC + 0.5 – 1.0 mS/cm Input EC + 2.0 – 4.0 mS/cm

Pillar 5: System Sanitation, Maintenance, and Water Quality

Precision automated fertigation systems are sensitive to chemical precipitation, scale accumulation, and biological fouling. A single blocked emitter in a high-density, small-substrate-volume canopy will destroy that plant's production capacity within 48 hours.

Water Treatment and Filtration Standards

Incoming source water must be analyzed for total dissolved solids (TDS), alkalinity, and microbial count before fertilizer formulation.

  • Total Suspended Solids (TSS) Filtration: Commercial systems require a minimum of 120 to 150 mesh (130–100 micron) disc filtration directly downstream of the main pump station, supplemented by 200-mesh filtration arrays at individual zone manifolds.
  • Alkalinity Neutralization: High bicarbonate ($HCO_3^-$) concentrations buffer pH upward, causing calcium and phosphate lockout. Target a residual bicarbonate level of 30–50 ppm ($CaCO_3$ equivalent) using sulfuric ($H_2SO_4$), nitric ($HNO_3$), or phosphoric ($H_3PO_4$) acid injection before final stock dosing.

Biofilm and Pathogen Control

Organic matter and bacterial complexes form resilient biofilms along PVC inner walls and emitter channels. Biofilm acts as an anchor for pathogens like Pythium, Fusarium, and Phytophthora.

+--------------------------------------------------------------------------+
| LINE SANITATION STRATEGY                                                 |
|                                                                          |
| [ Continuous Dosing ] -------------------------------------------------+ |
|   * Chemical: Hypochlorous Acid (HOCl)                                  | |
|   * Active Rate: 1.0 - 3.0 ppm Free Available Chlorine (FAC)           | |
|   * Purpose: Prevents bacterial colonization; zero phytotoxic root burn | |
|                                                                         | |
| [ Terminal Crop Reset (Shock Protocol) ] -------------------------------+ |
|   * Chemical: Peracetic Acid (PAA) 0.5-2.0% or 20-50 ppm Chlorine        | |
|   * Dwell Time: 4 to 12 hours pressurized dwell                          | |
|   * Purpose: Total oxidation of mineral scale, biofilm matrix & molds    | |
+--------------------------------------------------------------------------+

Routine Operational Checkpoints

  1. Weekly Flush Protocols: Open sub-main terminal purge valves and zone flush valves at operational pressure (25–35 PSI) for 60 seconds to evacuate settling silt and bio-detritus.
  2. Transducer and Sensor Calibration: Clean and calibrate inline pH and EC probes with fresh buffer solutions ($pH\ 4.01, 7.00$; $EC\ 1.413, 12.88\ mS/cm$) every 14 days.
  3. Runoff Electrical Balance Verification: Measure input EC, substrate pore-water EC, and drain-tray runoff EC daily across sentinel plants in every zone. Divergence between input and runoff EC exceeding >2.0 mS/cm indicates the need for an immediate reset shot adjustment.

Designing for Scalability: The MSO Framework

For Multi-State Operators (MSOs) and commercial-scale facilities, standardizing these fertigation pillars ensures uniform performance across diverse geographic footprints. Eliminating custom, one-off plumbing topologies in favor of standardized FloraFlex manifolds, regulated dripper lines, and closed-loop run schedules reduces training overhead and lowers operational variance.

By uniting rigorous hydraulic balancing, precise chemistry management, dynamic crop steering, and uncompromised line sanitation, commercial operators transform automated fertigation into a predictable, repeatable, and scalable production engine.


FAQ

What is the most common cause of non-uniform irrigation across commercial benches?

The primary cause of non-uniform irrigation is inadequate line sizing that leads to localized pressure drops, compounded by non-pressure-compensating emitters. When sub-main manifolds are too small or laid out without closed loops, plants at the terminal ends receive lower line pressure and reduced fluid volume. Installing properly sized sub-mains and utilizing FloraFlex pressure-compensating or tortuous path micro drippers balances delivery across all zones.

How does pore-water EC differ from bulk EC during crop steering?

Bulk EC measures the electrical conductivity of the combined growing medium, including the substrate material, air pockets, and water volume. Pore-water EC measures the actual conductivity of the liquid film immediately surrounding the root hairs. As substrate dryback occurs and volumetric water content drops, pore-water EC increases significantly while bulk EC readings may remain deceptively flat or drop.

How often should commercial drip irrigation lines be cleaned and sanitized?

Irrigation lines should receive continuous, low-dose sanitation with food-grade hypochlorous acid (HOCl) at 1 to 3 ppm free available chlorine throughout the cultivation cycle. Between crop cycles, lines must undergo an aggressive reset flush using peracetic acid (PAA) or elevated chlorine shock treatments (20–50 ppm) with a 4-to-12-hour dwell time to strip out accumulated biofilms and mineral scale.

What dryback percentage should commercial cultivators target for generative vs. vegetative steering?

For vegetative steering, overnight dryback should stay between 10% and 15% VWC to minimize root-zone osmotic stress and encourage rapid cell expansion. For generative steering, target overnight drybacks between 20% and 35% VWC, which increases root-zone tension, raises pore-water EC, and directs energy toward reproductive development and secondary metabolite accumulation.
