Commercial Fertigation Systems: Architectural Comparison, Specs, and ROI Guide

By AG Editorial · September 1, 2026

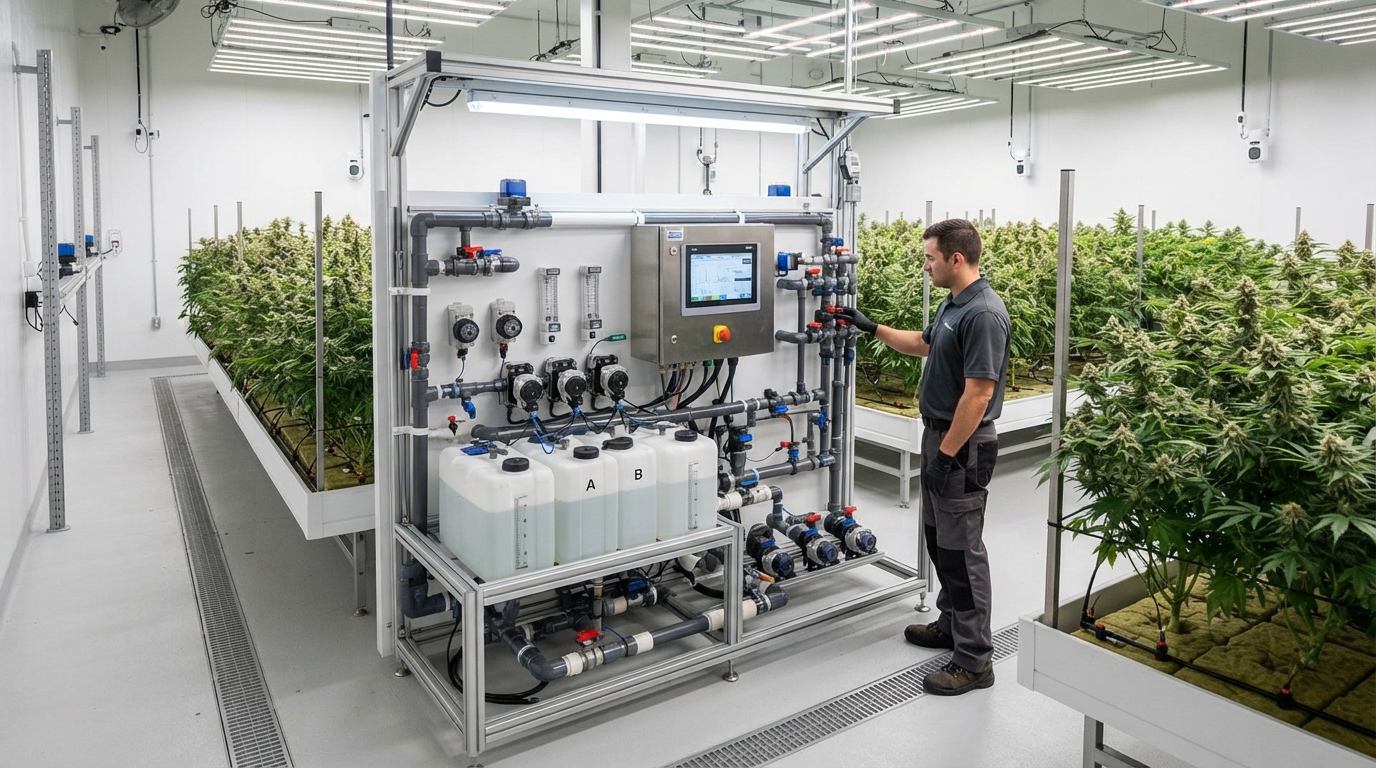

Commercial Fertigation Systems: Architectural Comparison, Specs, and ROI Guide — commercial fertigation system

Quick answer

A commercial fertigation system automates the precise mixing and delivery of water-soluble nutrients, acids, and water directly to plant root zones. Commercial cultivators must evaluate systems based on delivery architecture (inline direct injection vs. batch mixing), dosing precision (EC accuracy within ±0.05 mS/cm, pH within ±0.1), flow capacity (GPM), crop steering responsiveness, and integration with automated irrigation manifolds and substrate sensors.

Key takeaways

  • Architecture dictates agility: Inline injection systems adjust EC and pH on-demand across unlimited zones, whereas batch mixing requires dedicated tank volume per distinct nutrient recipe.
  • Precision enables crop steering: Modern high-frequency fertigation demands injection response times under 15 seconds to deliver micro-shots (50–150 mL) with tight EC/pH stability.
  • Filtration protects distribution: Disc and screen filtration rated at 120–200 mesh (75–130 microns) upstream of pressure-compensating drip emitters is mandatory to eliminate clogging and maintain distribution uniformity (DU > 95%).
  • Labor and input ROI: Automating fertigation reduces operational labor by 60–80%, decreases fertilizer waste by 15–25%, and minimizes batching errors that cause yield penalties across multi-tier or multi-room commercial facilities.

Commercial Fertigation System Architectures

Commercial scale cultivation requires moving away from manual reservoir mixing toward automated, high-precision nutrient delivery. At scale, an error in electrical conductivity (EC) or pH can compromise an entire canopy across thousands of square feet. Selecting the right commercial fertigation system architecture depends on facility footprint, zone diversity, pipe run volume, and irrigation frequency.

Commercial platforms fall into three primary architectural categories:

  1. Inline Direct Injection (Proportional Injection)
  2. Batch Blending (Recirculating Mixing Tanks)
  3. Hybrid Skid Systems (Bypass Mixing Loops)
+--------------------------------------------------------------------------------+
|                       FERTIGATION ARCHITECTURE COMPARISON                      |
+-----------------------+------------------------+-------------------------------+
| Inline Direct Inject  | Batch Blending Tank    | Hybrid Bypass Loop            |
| [Water Main]          | [Stock Tanks]          | [Water Main]                  |
|       |               |       |                |       |                       |
| [Injectors A,B,C,pH]  | [Mixing Reservoir]     | [Recirculating Bypass Skid]   |
|       |               |       |                |       |                       |
| [Manifold / Emitters] | [Pump Station]         | [Dynamic Venturi Injection]   |
|                       |       |                |       |                       |
| (Zero Tank Footprint) | [Manifold / Emitters]  | [Manifold / Emitters]         |
+-----------------------+------------------------+-------------------------------+

1. Inline Direct Injection Systems

Inline direct injection systems inject stock concentrate nutrients and pH adjusters directly into the dynamic water stream using high-speed stepper-motor peristaltic pumps, electronic solenoid dosing valves, or dynamic venturi blocks. Dosing occurs in real time based on continuous downstream sensor feedback.

  • Pros: Minimal floor space required; zero standing water volume; instant switching between different EC/pH targets and recipes across different growth phases (e.g., vegetative vs. late generative bloom); virtually unlimited batch size.
  • Cons: Demands high-speed industrial sensors with low latency; requires stable inlet water pressure; system failure affects irrigation lines immediately if dynamic fail-safes are not configured.

2. Batch Blending Systems

Batch systems pump water into an intermediate reservoir (typically 100 to 2,000+ gallons), dose concentrated fertilizers and acid/base until sensor setpoints are satisfied, agitate the solution, and then deliver the pre-mixed batch to designated zones via a delivery pump.

  • Pros: Highly stable EC and pH homogeneity prior to line pressurization; lower vulnerability to momentary sensor fluctuations; compatible with low inlet water flow rates (water can accumulate over time).
  • Cons: Massive physical footprint; recipe switching is constrained by tank availability; standing water introduces temperature management issues and biofilm accumulation; water and nutrient waste occur if batch volumes are miscalculated.

3. Hybrid Bypass Systems (Mixing Loop)

Hybrid systems use a closed dynamic loop where a small conditioning tank (20 to 100 gallons) or high-flow bypass manifold continuously recirculates water while high-speed dosing injectors feed into the loop. Conditioned water is blended into the primary delivery line on demand.

  • Pros: Fast recipe transition with high EC/pH buffer stability; excellent consistency during low-flow pulse irrigation; handles variable system flow rates without sensor overshoot.
  • Cons: Higher mechanical complexity; requires multiple pumps (recirculation pump plus delivery booster pump); higher upfront capital expenditure.

Technical Comparison Matrix

The following matrix compares the core engineering parameters of the three primary fertigation configurations used in high-performance commercial greenhouses and indoor facilities:

Specification / Metric Inline Direct Injection Batch Blending Systems Hybrid Bypass Skid Systems
Flow Rate Capability 5 GPM – 300+ GPM 10 GPM – 500+ GPM (pump limited) 10 GPM – 250+ GPM
EC Accuracy ±0.05 to ±0.1 mS/cm ±0.02 mS/cm ±0.05 mS/cm
pH Accuracy ±0.1 pH ±0.05 pH ±0.08 pH
Recipe Changeover Latency Instantaneous (<5 seconds) Hours (or dedicated tank per recipe) Low (10–30 seconds)
Physical Footprint Small (10–30 sq ft) Very Large (100–500+ sq ft) Moderate (30–80 sq ft)
Suitability for Crop Steering High (supports frequent micro-shots) Low to Moderate High (rapid pulse execution)
Stock Tank Requirements High concentration (1:100 to 1:200) Moderate concentration High concentration
Maintenance Complexity Moderate (sensor calibration, pump tubes) Low to Moderate (cleaning tanks) High (multiple pumps, valves, loops)
CapEx (Initial Cost) Medium to High ($15k–$60k+) Low to Medium ($10k–$40k) High ($30k–$80k+)

Critical Engineering Subsystems

A commercial fertigation system is only as reliable as its weakest subsystem. When evaluating or configuring industrial equipment, growers and facilities engineers must evaluate four major assemblies:

+--------------------------------------------------------------------------------+
|                     COMPLETE FERTIGATION SUBSYSTEM CHAIN                       |
|                                                                                |
|  [Supply Water] --> [Filtration] --> [Dosing & Blending] --> [Zone Valves]     |
|        |                  |                   |                      |         |
|  RO / City Tap    Auto-Backwash Disc    EC / pH Transmitters   24VAC Solenoids |
|  Break Tanks      130 Micron Screen     Multi-channel Venturi  PC Drippers     |
+--------------------------------------------------------------------------------+

1. The Dosing and Injection Engine

Dosing engines govern how concentrated stock solutions are integrated into the main irrigation line:

  • Peristaltic Metering Pumps: Driven by stepper motors. Best for micro-dosing highly concentrated acids, bases, and additives down to 0.1 mL/gal accuracy. Requires periodic tubing replacement (every 6–12 months).
  • Venturi Injectors: Utilize the differential pressure (Bernoulli's principle) created by a constriction in pipe diameter to draw concentrate into the stream. High durability, zero moving parts, but requires consistent differential pressure (typically a 20–30% pressure drop across the injector) to maintain draw accuracy.
  • Positive Displacement Water-Powered Pumps: Non-electric proportional injectors (e.g., hydraulic piston mechanics). Durable and simple, but less integrated with programmatic multi-recipe automation software compared to electric automated manifolds.

2. Sensor Manifolds and Monitoring Instrumentation

High-reliability fertigation skids incorporate dual or triple redundancy on sensor lines:

  • Toroidal vs. Contacting EC Sensors: Toroidal (inductive) conductivity sensors resist fouling, scaling, and polarization far better than standard contacting electrode sensors in high-salinity stock solutions.
  • Industrial pH Glass Electrodes: Require double or triple-junction references with gelled or solid polymer electrolytes to resist chemical poisoning from concentrated acids and fertilizers.
  • Differential Pressure Transducers: Measure inlet vs. outlet pressure across filtration skids to monitor pressure drop and trigger automated backwash cycles.

3. Industrial Filtration Architecture

To prevent line clogging and pressure drops across thousands of pressure-compensating (PC) emitters, commercial fertigation requires a multi-stage filtration strategy:

  • Primary Supply Filtration: Sand media filters or automatic screen filters at the facility intake to strip gross particulate down to 200–400 microns.
  • Skid Filtration: Automatic backwashing disc filters (120 to 130 microns / 120–140 mesh) positioned immediately downstream of the dosing/mixing engine to capture any nutrient precipitate or undissolved mineral solids before zone distribution.
Filtration Requirement: Minimum 120–200 Mesh (75–130 Micron)
Target System Operating Pressure: 25–45 PSI at the Manifold
Emitter Type: Pressure-Compensating (PC), Anti-Drain (CNL)

4. Zone Distribution and Delivery Hardware

The delivery line hardware determines whether the exact recipe formulated by the fertigation skid actually reaches each plant uniformly:

  • Pressure-Compensating (PC) Emitters: Maintain a constant flow rate (e.g., 0.3, 0.5, or 1.0 GPH) across pressure fluctuations ranging between 10 PSI and 50 PSI.
  • Compensating Non-Leak (CNL) Mechanism: Shuts off flow instantly when line pressure drops below ~2–4 PSI. This prevents low-elevation line drainage, ensuring the entire manifold pressurizes and depressurizes simultaneously. Without CNL, the lowest plants receive surplus runoff while higher plants receive deficit volumes during short-pulse irrigation.

Precision Crop Steering Integration

Modern commercial cultivation relies heavily on crop steering—manipulating root zone water content (VWC) and pore water electrical conductivity ($EC_{pw}$) to signal vegetative or generative plant morphology. Commercial fertigation systems must deliver exact volumetric pulses rather than simple timed runs.

+--------------------------------------------------------------------------------+
|                      GENERATIVE VS. VEGETATIVE SHOT REGIMES                    |
+------------------------------------+-------------------------------------------+
| Generative Steering Regimen        | Vegetative Steering Regimen               |
+------------------------------------+-------------------------------------------+
| Dryback Target: 40% - 60%          | Dryback Target: 20% - 35%                 |
| Feed EC: 3.5 - 6.0+ mS/cm          | Feed EC: 2.0 - 3.0 mS/cm                  |
| Strategy: Large initial dryback,   | Strategy: Rapid morning saturation (P1),  |
| few large volume shots (P2),       | frequent small maintenance shots (P2),    |
| early shot cutoff to drive stress. | late cutoff to keep media saturated.     |
+------------------------------------+-------------------------------------------+

Phase 1 (P1): Ramp-Up to Field Capacity

The fertigation system delivers a series of micro-pulses (e.g., 1–3 minutes each, 50–150 mL per plant) starting 1–2 hours after lights-on or sunrise. This gradual saturation prevents hydraulic channeling through rockwool or coco coir media, bringing the root zone up to maximum field capacity without over-saturating the substrate.

Phase 2 (P2): Maintenance Saturation

The system maintains substrate VWC within a defined band. Under generative steering, P2 shots are limited or eliminated to increase osmotic pressure; under vegetative steering, frequent micro-shots are injected throughout the photoperiod to keep root-zone moisture high and EC lower.

Phase 3 (P3): Dryback Period

Irrigation ceases several hours before lights-off. The commercial controller relies on substrate volumetric water content (VWC) sensors to verify that root zone drybacks hit target percentages (e.g., 10–15% overnight for vegetative; 20–30%+ for generative) before initiating irrigation the following cycle.

To execute this without human intervention, the fertigation controller must dynamically trigger irrigation runs based on real-time substrate VWC thresholds and integrated environmental VPD data rather than relying on static time-of-day timers.

Water Quality, Flow Sizing, and Pipe Sizing Calculations

Sizing a commercial fertigation skid requires determining peak water demand across all concurrently firing zones. Calculating peak flow rate and balancing friction loss prevents uneven dosing.

1. Calculating Peak System Flow Rate (GPM)

$$\text{Total GPM} = \frac{\text{Total Active Plants per Zone} \times \text{Emitter Flow Rate (GPH)}}{60}$$

Example Calculation:

  • A commercial room contains 1,200 plants.
  • Each plant is fed by two 0.5 GPH pressure-compensating emitters (1.0 GPH total per plant).
  • Peak Flow per Zone $= (1,200 \times 1.0) / 60 = 20\text{ GPM}$.

If the facility is plumbed to fire 3 rooms simultaneously during the morning P1 ramp-up window, the main fertigation skid must deliver a minimum continuous flow of 60 GPM at 35–45 PSI dynamic pressure.

2. Velocity and Pipe Diameter Rules

To prevent water hammer and excessive friction losses, fluid velocity through distribution supply lines should remain below 5 feet per second (fps).

| Nominal Pipe Size (Schedule 40 PVC) | Max Flow Rate @ <5 fps Velocity | Max Flow Rate @ <7 fps Velocity (Short Runs) | | :--- | :--- | :--- | :--- | | 1.0 Inch | 13 GPM | 18 GPM | | 1.5 Inch | 30 GPM | 42 GPM | | 2.0 Inch | 50 GPM | 70 GPM | | 3.0 Inch | 110 GPM | 155 GPM | | 4.0 Inch | 195 GPM | 275 GPM |

Selecting undersized plumbing creates massive pressure differentials between the fertigation skid and the furthest manifold, destabilizing injector operating pressures and reducing emitter output uniformity.

Operational ROI: Commercial Facilities and MSOs

For Multi-State Operators (MSOs), commercial greenhouse facilities, and wholesale nurseries, manual batching represents a high-risk operational vulnerability. Automating nutrient distribution through commercial-grade fertigation delivers measurable financial returns:

+--------------------------------------------------------------------------------+
|                    ESTIMATED ANNUAL ROI FOR A 25,000 SQ FT CANOPY              |
+-----------------------+------------------------+-------------------------------+
| Operational Vector    | Manual / Semi-Auto     | Fully Automated Fertigation   |
+-----------------------+------------------------+-------------------------------+
| Labor Hours / Week    | 40–60 hours            | 4–8 hours (validation only)   |
| Annual Labor Cost     | $52,000 - $78,000      | $5,200 - $10,400              |
| Batching Error Losses | 1–3% crop loss risk    | <0.1% (automated fail-safes)  |
| Fertilizer Waste Rate | 15–25% (over-drain)    | 5–10% (targeted runoff)       |
| Annual Input Savings  | Base Baseline          | $12,000 - $28,000/yr          |
+-----------------------+------------------------+-------------------------------+

Labor Allocation Shift

Instead of devoting 5–8 cultivation technician hours per day to hand-filling reservoirs, hand-measuring liquid inputs, mixing, and reading dip-tests, manual labor is reduced to routine inspection, sensor calibration (bi-weekly), and concentrated stock tank replenishment. Labor can be redeployed to canopy work, scouting, and plant health management.

Batch Consistency and Yield Protection

Batching errors—such as forgetting an additive component, inverted micro-to-macro ratios, or dosing incorrect acid volumes—cause catastrophic crop setbacks. Automated systems utilize hard parameter limits (e.g., hard cutoff if line EC exceeds 4.5 mS/cm or pH drops below 5.2), shutting down solenoid valves and transmitting alert notifications to facilities engineers within milliseconds.

Fertilizer and Water Efficiency

Targeted delivery through automated micro-pulsing allows growers to lower overall runoff targets from 25–35% down to 10–15% without accumulating toxic root-zone salts. This reduces total input formulation consumption by up to 20% annually while dropping facility wastewater disposal volumes.

Selecting the Right System: Decision Framework

When specifying a commercial fertigation platform, evaluate your facility against these operational parameters:

                    [Facility Evaluation]
                              |
            +-----------------+-----------------+
            |                                   |
    [Floor Space < 50 sq ft?]           [Multiple Varietals /]
    [Need Multiple Recipes?]            [Different Growth Stages?]
            |                                   |
           YES                                 YES
            |                                   |
            v                                   v
[Inline Direct Injection Skid]      [Multi-Channel Skid w/ Dynamic Recipe Switching]
            |                                   |
            NO                                  NO
            |                                   |
            v                                   v
[Batch Blending System]             [Pre-Set Ratio Proportional System]
  1. Room and Recipe Count: Facilities with distinct, staggered flowering rooms requiring separate nutritional curves (e.g., vegetative, stretch, bulking, ripening) require high-speed inline injection to toggle recipes between zone calls on a single skid.
  2. Inlet Water Infrastructure: Facilities using low-output Reverse Osmosis (RO) systems without large intermediate atmospheric storage tanks benefit from batch tank systems that buffer water volume over time.
  3. Substrate Strategy: Rockwool and high-porosity coco coir necessitate precise, frequent micro-shots that inline injection or hybrid bypass systems handle with the lowest lag time.
  4. Software and BMS Integration: Ensure the fertigation skid supports industrial protocols (BACnet, Modbus, MQTT, or dry contact triggers) to integrate directly into building management systems, centralized crop steering dashboards, and environmental monitors.

FAQ

What is the difference between inline injection and batch tank fertigation?

Inline injection doses concentrated nutrients and pH adjusters directly into the moving water line in real time, requiring no large standing water reservoirs and allowing immediate recipe changes between zones. Batch tank systems pre-mix water and nutrients in a large atmospheric holding tank before delivery. Inline systems save floor space and support multi-recipe facilities, while batch systems provide high baseline buffer stability for single-recipe operations.

How precise should EC and pH control be in a commercial fertigation system?

A commercial-grade system should maintain target electrical conductivity (EC) within ±0.05 to ±0.1 mS/cm and pH within ±0.1 units across the entire duration of an irrigation event. High-precision control prevents osmotic shock and nutrient lockout during automated micro-pulse feedings.

What filtration is required for automated drip fertigation systems?

Automated drip systems require a minimum of 120 to 200 mesh (130 to 75 micron) filtration installed downstream of dosing units to prevent suspended solids and precipitated salts from clogging pressure-compensating (PC) emitters. Automatic backwashing disc or screen filters are standard for commercial facilities to ensure uninterrupted flow.

Can a commercial fertigation system automate crop steering drybacks?

Yes, modern commercial fertigation controllers integrate with substrate moisture (VWC) and pore-water EC sensors to automate crop steering. Rather than relying on simple time-of-day clocks, the system calculates exact shot volumes (P1, P2) and triggers irrigations based on real-time substrate drydown rates and environmental vapor pressure deficit (VPD).
